Structural Design Principles and Material Standards for Bridge Bearings

In modern civil engineering, bridges are subjected to continuous dynamic and environmental forces. Thermal expansion, concrete shrinkage, creep, traffic loads, and seismic activities generate substantial displacements and rotations within the superstructure. To prevent these movements from transferring destructive stresses to the supporting substructure, specialized structural components must be integrated at the beam-girder interfaces. A primary component utilized to address these displacement demands is the elastomeric bearing, which provides the necessary flexibility and load-bearing capacity.

For structural engineers, asset owners, and procurement specialists, selecting the correct bearing system requires a deep understanding of material properties, mechanical behavior under load, and strict compliance with international manufacturing standards. This analysis explores the functional mechanics, material formulations, and design criteria that govern the performance of these structural elements in demanding environments.

Mechanics of Multi-Directional Movement Accommodation

The primary function of a flexible structural support is to facilitate controlled movements while supporting massive vertical loads. These movements occur in three dimensions and must be managed without causing structural instability.

Shear Deformation and Translation

Horizontal translation caused by thermal expansion or contraction is accommodated by the shear deformation of the elastomer. Under a horizontal force, the top surface of the elastomer shifts relative to the bottom surface. This shear strain must remain within strict limits to prevent tearing or delamination of the polymer matrix. The horizontal stiffness of the system is directly proportional to the plan area of the rubber and its shear modulus, and inversely proportional to the total thickness of the elastomer layers.

Rotational Capacity

As live traffic loads cross a bridge, the girders deflect, causing rotation at the supports. The elastomeric layers accommodate this rotation by compressing non-uniformly. This compression generates varying stress profiles across the bearing surface. To ensure long-term functionality, the rotation must not cause liftoff at the edges of the bearing, nor should it subject the elastomer to excessive localized compressive strain. The design must balance the thickness of individual elastomer layers to facilitate rotation while resisting excessive vertical deflection.

Material Science: Elastomer Selection and Compound Formulations

The performance of a flexible bearing is highly dependent on the quality of its elastomeric compound. The two most common raw materials utilized in civil engineering applications are natural rubber (polyisoprene) and chloroprene (neoprene). Each material possesses distinct chemical and physical characteristics that make it suitable for specific environmental conditions.

• Natural Rubber (Polyisoprene): This material exhibits excellent low-temperature flexibility, high tensile strength, and superior resistance to tear propagation. Natural rubber is highly suitable for regions that experience extreme sub-zero temperatures. However, it requires compounding with antioxidants and antiozonants to protect it from environmental weathering. For instance, elastomeric compounds engineered by KINGWORK utilize advanced polymer blending to resist degradation caused by ultraviolet light and environmental pollutants.

• Chloroprene (Neoprene): Known for its robust chemical resistance, chloroprene performs exceptionally well in environments with high ozone concentrations, oil exposure, and moderate marine salinity. It offers inherent resistance to aging and flame propagation, making it a reliable choice for urban and industrial coastal bridges.

Physical and Mechanical Properties

To verify the suitability of an elastomeric compound, rigorous laboratory testing is required to confirm several key properties:

• Hardness: Typically measured in Shore A durometer, with values ranging from 50 to 70. Hardness serves as an indirect indicator of the material's shear modulus.

• Shear Modulus (G): The most important parameter for design calculations, typically ranging from 0.7 MPa to 1.15 MPa under standard conditions.

• Tensile Strength and Elongation: Minimum values are defined by international standards to ensure the material can withstand extreme strains without structural failure.

• Compression Set: Measures the permanent deformation remaining after the compressive force is released, indicating the material's long-term resilience.

Design Mathematics: Shape Factor and Internal Reinforcement

Unreinforced elastomer blocks tend to bulge laterally under compressive loads, resulting in significant vertical deflection. To control this behavior, steel plates are vulcanized to the rubber layers, creating a laminated structure.

The Concept of Shape Factor

When designing a structural elastomeric bearing, engineers must calculate the shape factor, which directly influences compressive stiffness. The shape factor (S) is defined as the ratio of the loaded plan area to the lateral area free to bulge for a single elastomer layer.

For a rectangular bearing with plan dimensions $a$ and $b$, and a single elastomer layer thickness of $t$, the shape factor is calculated as:

$$S = \frac{a \times b}{2t(a + b)}$$

A higher shape factor indicates thinner elastomer layers relative to the plan area. Thinner layers restrict lateral bulging, which significantly increases the compressive stiffness of the unit while leaving the shear stiffness unaffected. This allows the designer to independenty control vertical load capacity and horizontal translation capacity.

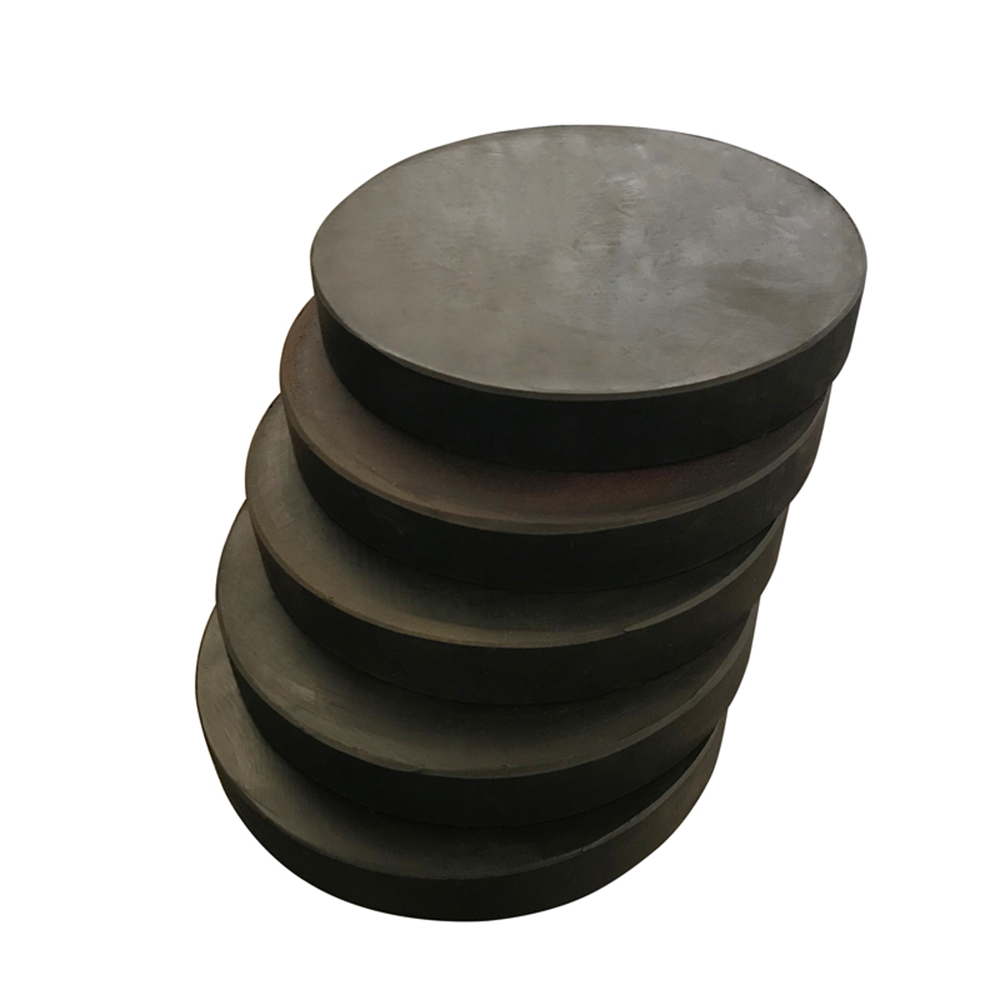

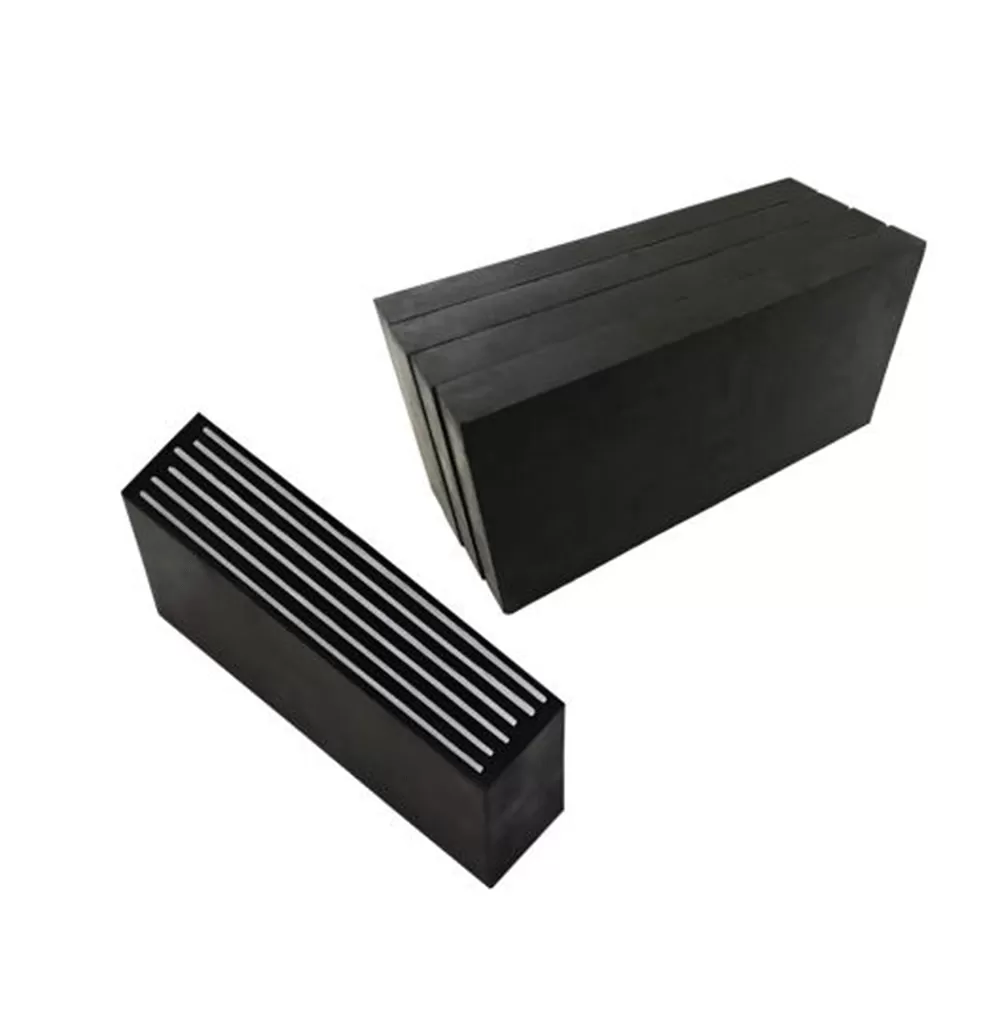

Steel Shim Reinforcement

Internal steel shims prevent the elastomer from bulging under load. These plates must be completely encased in rubber to protect them from moisture and corrosive agents. The thickness of the steel shims must be sufficient to resist the tensile forces generated by the elastomer attempting to expand laterally. Minimum steel thickness is typically governed by yield strength and fatigue limits under dynamic loading conditions.

International Engineering Standards and Quality Control

To ensure structural safety, bridge components must conform to strict manufacturing and testing protocols. Different regions rely on specific design standards to qualify elastomeric components.

AASHTO LRFD Bridge Design Specifications

In North America, the American Association of State Highway and Transportation Officials (AASHTO) defines two design methods. Method A is a simplified approach with conservative stress limits, while Method B allows for higher design stresses but requires more comprehensive testing and calculation of combined shear, compression, and rotational strains.

European Standard EN 1337-3

European designs utilize EN 1337-3, which outlines specific requirements for raw materials, manufacturing tolerances, and performance testing. This standard defines the maximum allowable shear strain and compressive stresses based on extensive experimental testing and factor-of-safety applications.

Testing Protocols for Quality Assurance

To confirm that the manufactured components meet the design specifications, representative samples must undergo several mechanical tests:

• Short-Duration Compression Test: The unit is subjected to 1.5 times the maximum design load to verify structural integrity and check for any visible defects, such as bonding failures or uneven bulging.

• Shear Stiffness Test: Measures the shear modulus (G) under controlled displacement rates to ensure the elastomer behaves as predicted by the design calculations.

• Adhesion Testing: Verifies the bond strength between the rubber layers and the steel shims, ensuring they will not delaminate under cyclic shear loading.

Common Structural Challenges and Engineering Solutions

During the service life of a bridge, several structural challenges can arise at the bearing interfaces. Implementing the correct engineering solutions during the design phase is necessary to prevent premature failures.

Preventing Slip and Rotation Stability Issues

Under low vertical loads and high horizontal displacement, a bearing may slip or walk out of its designated position. To prevent this, engineers can specify external restraining steel plates or vulcanize the elastomer to top and bottom steel sole plates that are mechanically anchored to the concrete structure.

Accommodating High Rotations

In structures with long spans or significant skew angles, standard rectangular elastomeric units may struggle to accommodate the required rotations. In such cases, designers can utilize spherical bearings or elastomeric units with integrated PTFE sliding surfaces, which allow for greater displacement capacities without increasing the thickness of the rubber.

As a dedicated manufacturer, KINGWORK ensures that every elastomeric bearing undergoes rigorous physical testing before shipment. This quality control protocol minimizes the potential for installation errors and guarantees performance under severe environmental conditions.

Frequently Asked Questions

Q1: What is the expected service life of a high-quality elastomeric bearing in a highway bridge?

A1: A properly designed and manufactured bearing can achieve a service life of 40 to 60 years. Longevity depends on compound selection, environmental exposure, and the accuracy of the structural design calculations.

Q2: How does temperature affect the physical behavior of the elastomer?

A2: Lower temperatures increase the stiffness of both natural rubber and chloroprene. Under extreme cold, elastomers can undergo crystallization, which increases their shear modulus and structural stiffness. This behavior must be accounted for in sub-zero design environments.

Q3: Can natural rubber bearings be used in coastal marine environments?

A3: Yes, provided they are formulated with protective anti-degradants and a sufficiently thick outer protective cover layer of rubber to shield the internal steel shims from chloride intrusion.

Q4: What causes delamination in laminated elastomeric systems?

A4: Delamination is typically caused by inadequate chemical bonding between the elastomer and the steel plates during the vulcanization process, or by exceeding the design shear strain limits under cyclic loading.

Q5: How is the shear modulus of a bearing verified during quality control?

A5: The shear modulus is evaluated by subjecting a pair of bearings to a constant compressive force while applying a cyclic horizontal shear displacement. The slope of the resulting load-displacement curve is used to calculate the actual shear modulus of the elastomer compound.
